  • Pozidrive

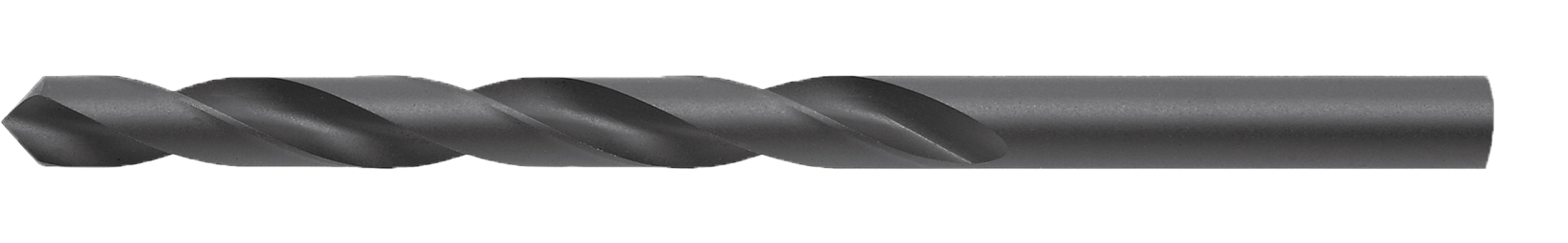

    Wofix Din 338 HSS-R Metal Drill

  • Thinning

    Point angle

    Surface

    : Normal grinding (for optimum grip on material)

    : 118º

    : Black

  • High performance rolled twist drill made of High Strength Steel (HSS). The material is strengthened by the rolled production method and the break resistance is higher.

    Applications:
    for steel, alloyed and unalloyed cast steel (900 N/mm2 strength), grey, tempered, nodular- and spray cast iron, sintered iron, nickel silver, graphite, short machined aluminium alloys, brass and bronze.

  • Article Ø mm Total mm Spiral mm Case units
    7300010 1,0 34 12 10
    7300015 1,5 40 18 10
    7300020 2,0 49 24 10
    7300025 2,5 57 30 10
    7300030 3,0 61 33 10
    7300033 3,3 65 36 10
    7300035 3,5 70 39 10
    7300040 4,0 75 43 10
    7300042 4,2 75 43 10
    7300045 4,5 80 47 10
    7300050 5,0 86 52 10
    7300055 5,5 93 57 10
    7300060 6,0 93 57 10
    7300065 6,5 101 63 10
    7300068 6,8 109 69 10
    7300070 7,0 109 69 10
    7300075 7,5 109 69 10
    7300080 8,0 117 75 10
    7300085 8,5 117 75 10
    7300090 9,0 125 81 10
    7300095 9,5 125 81 10
    7300100 10,0 133 87 10
    7300102 10,2 133 87 5
    7300105 10,5 133 87 5
    7300110 11,0 142 94 5
    7300115 11,5 142 94 5
    7300120 12,0 151 101 5
    7300122 12,2 151 101 5
    7300125 12,5 151 101 5
    7300130 13,0 151 101 5
  • Pozidrive

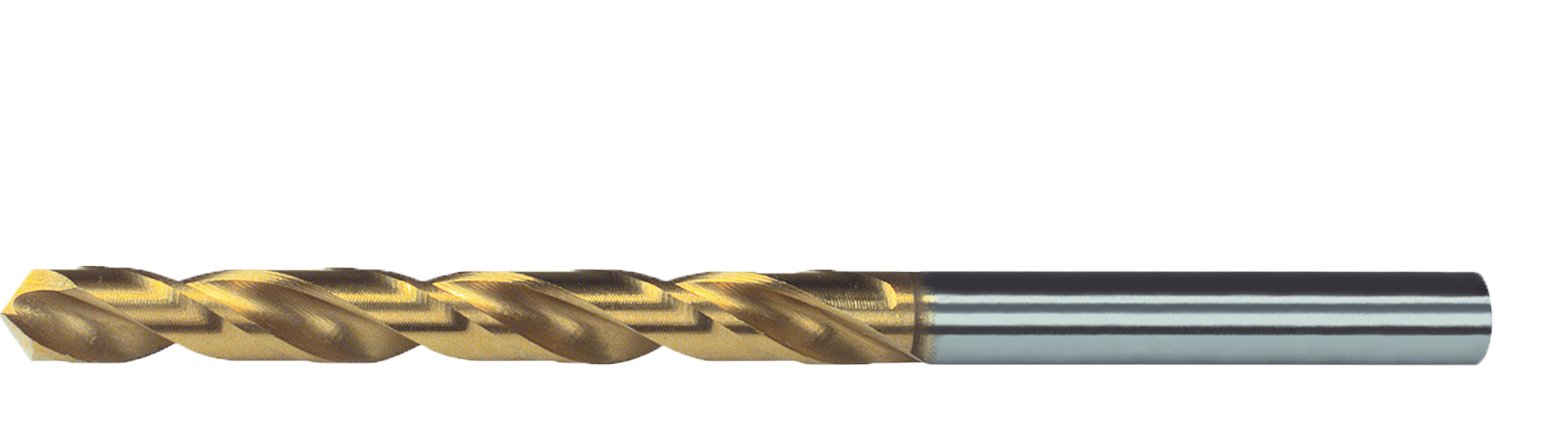

    Wofix Din 338 HSS-G TiN Metal Drill

  • Thinning

    Point angle

    Surface

    : From Ø3,0 mm split point geometry DIN 1412 C (Good centering with less force)

    : 118º

    : Titanium-Nitride (TiN) coating

  • High performance sharpened twist drill made of High Strength Steel (HSS). The fully sharpened twist drill has an increased radial run-out. The TiN coating increases surface hardness to about 2,300 HV and heat resistance up to 600ºC. This results in a longer tool life with increased cutting values.

    Applications:
    for steel, alloyed and unalloyed cast steel (up to 1100 N/mm2 strength), grey, tempered, nodular- and spray cast iron, sintered iron, nickel silver, graphite, short machined aluminium alloys, brass and bronze.

  • Article Ø mm Total mm Spiral mm Case units
    7300160 1,0 34 12 10
    7300164 1,5 40 18 10
    7300168 2,0 49 24 10
    7300172 2,5 57 30 10
    7300176 3,0 61 33 10
    7300177 3,1 61 33 10
    7300180 3,3 65 36 10
    7300184 3,5 70 39 10
    7300188 4,0 75 43 10
    7300192 4,2 75 43 10
    7300196 4,5 80 47 10
    7300198 4.8 86 52 10
    7300200 5,0 86 52 10
    7300204 5,5 93 57 10
    7300208 6,0 93 57 10
    7300212 6,5 101 63 10
    7300216 6,8 109 69 10
    7300220 7,0 109 69 10
    7300224 7,5 109 69 10
    7300228 8,0 117 75 10
    7300232 8,5 117 75 10
    7300236 9,0 125 81 10
    7300240 9,5 125 81 10
    7300244 10,0 133 87 10
    7300248 10,2 133 87 10
    7300252 10,5 133 87 5
    7300256 11,0 142 94 5
    7300260 11,5 142 94 5
    7300264 12,0 151 101 5
    7300268 12,2 151 101 5
    7300272 12,5 151 101 5
    7300276 13,0 151 101 5
  • Pozidrive

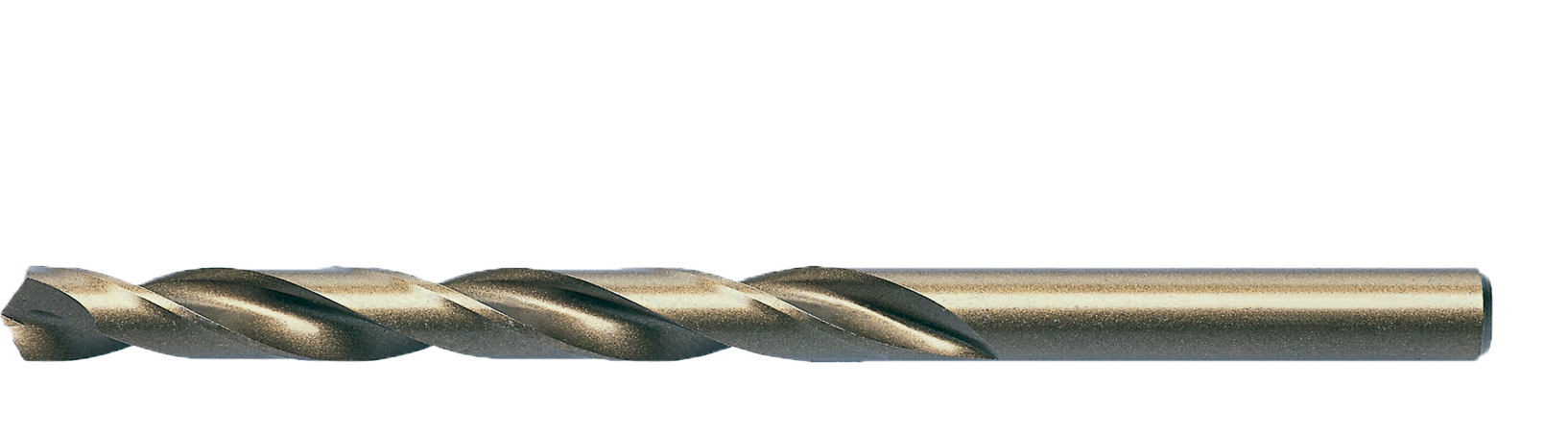

    Wofix Din 338 HSS-G Co 5 Metal Drill

  • Thinning

    Point angle

    Surface

    : From Ø3,0 mm split point geometry DIN 1412 C (Good centring with less force)

    : 130º

    : Gold brown

  • High performance sharpened twist drill made of High Strength Steel (HSS). The fully sharpened twist drill has an increased radial run-out. The cobalt content provides higher heat resistance.

    Applications:
    for unalloyed and alloyed types of steel (up to 1100 N/mm2 strength), warm and cold ductile types of steel, non-ferrous and case hardened steels as well as rust and acid resistant types of steel.

  • Article Ø mm Total mm Spiral mm Case units
    7300300 1,0 34 12 10
    7300304 1,5 40 18 10
    7300308 2,0 49 24 10
    7300312 2,5 57 30 10
    7300316 3,0 61 33 10
    7300320 3,3 65 36 10
    7300324 3,5 70 39 10
    7300328 4,0 75 43 10
    7300332 4,2 75 43 10
    7300336 4,5 80 47 10
    7300340 5,0 86 52 10
    7300342 5,2 86 52 10
    7300344 5,5 93 57 10
    7300346 5,8 93 57 10
    7300348 6,0 93 57 10
    7300352 6,5 101 63 10
    7300356 6,8 109 69 10
    7300360 7,0 109 69 10
    7300364 7,5 109 69 10
    7300368 8,0 117 75 10
    7300372 8,5 117 75 10
    7300376 9,0 125 81 10
    7300380 9,5 125 81 10
    7300384 10,0 133 87 10
    7300388 10,2 133 87 10
    7300392 10,5 133 87 5
    7300396 11,0 142 94 5
    7300400 11,5 142 94 5
    7300404 12,0 151 101 5
    7300408 12,5 151 101 5
    7300412 13,0 151 101 5
