Wofix Chipboard Screws Uni Torx
The screws are ideally suited for the professional user. Universally usable. Frequently used by interior finishers and installers, either with or without plugs and for metal on wood.
- flat head
- galvanised
- extra deep bit groove and perfect fit with Wofix Bits
- serrated screw thread
- SHR Quality mark
-
-

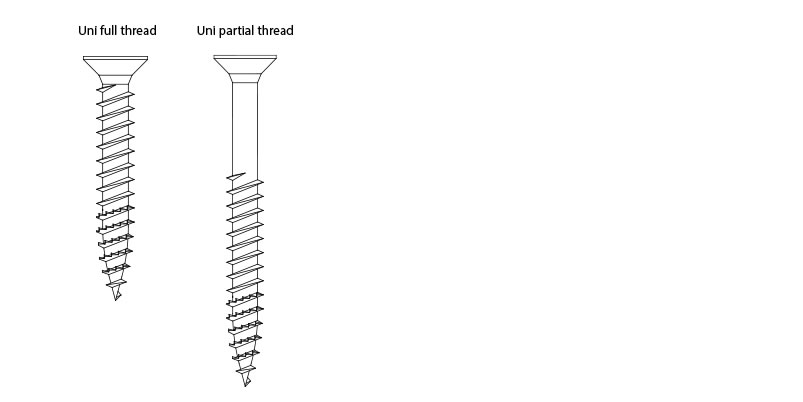

Article Dimensions(ØxL/dl)mm Implementation TX no. Unit Outer box Pallet 0342102 3.0 x 12 Full thread TX 10 200 15.200 364.800 0342103 3.0 x 16 Full thread TX 10 200 15.200 364.800 0342104 3.0 x 20 Full thread TX 10 200 15.200 364.800 0342105 3.0 x 25 Full thread TX 10 200 15.200 364.800 0342106 3.0 x 30/18 Partial thread TX 10 200 15.200 364.800 0342107 3.0 x 35/20 Partial thread TX 10 200 9.600 230.400 0342108 3.0 x 40/24 Partial thread TX 10 200 9.600 230.400 0342109 3.0 x 45/30 Partial thread TX 10 200 6.400 153.600 0342110 3.5 x 12 Full thread TX 15 200 15.200 364.800 0342111 3.5 x 16 Full thread TX 15 200 15.200 364.800 0342112 3.5 x 20 Full thread TX 15 200 15.200 364.800 0342113 3.5 x 25 Full thread TX 15 200 15.200 364.800 0342114 3.5 x 30 Full thread TX 15 200 9.600 230.400 0342115 3.5 x 35 Full thread TX 15 200 9.600 230.400 0342116 3.5 x 40/24 Partial thread TX 15 200 6.400 153.600 0342117 3.5 x 45/30 Partial thread TX 15 200 6.400 153.600 0342118 3.5 x 50/30 Partial thread TX 15 200 6.400 153.600 0342120 4.0 x 16 Full thread TX 20 200 15.200 364.800 0342121 4.0 x 20 Full thread TX 20 200 15.200 364.800 0342122 4.0 x 25 Full thread TX 20 200 15.200 364.800 0342123 4.0 x 30 Full thread TX 20 200 9.600 230.400 0342124 4.0 x 35 Full thread TX 20 200 9.600 230.400 0342125 4.0 x 40 Full thread TX 20 200 6.400 153.600 0342126 4.0 x 45/30 Partial thread TX 20 200 6.400 153.600 0342127 4.0 x 50/30 Partial thread TX 20 200 6.400 153.600 0342129 4.0 x 60/36 Partial thread TX 20 200 4.800 115.200 0342130 4.0 x 70/42 Partial thread TX 20 200 3.200 76.800 0342144 4.5 x 16 Full thread TX 25 200 15.200 364.800 0342145 4.5 x 20 Full thread TX 25 200 15.200 364.800 0342146 4.5 x 25 Full thread TX 25 200 9.600 230.400 0342147 4.5 x 30 Full thread TX 25 200 6.400 153.600 0342148 4.5 x 35 Full thread TX 25 200 6.400 153.600 0342149 4.5 x 40/24 Partial thread TX 25 200 6.400 153.600 0342150 4.5 x 45/30 Partial thread TX 25 200 4.800 115.200 0342151 4.5 x 50/30 Partial thread TX 25 200 4.800 115.200 0342152 4.5 x 60/36 Partial thread TX 25 200 3.200 76.800 0342153 4.5 x 70/42 Partial thread TX 25 200 3.200 76.800 0342154 4.5 x 80/53 Partial thread TX 25 200 3.200 76.800 0342157 5.0 x 20 Full thread TX 25 200 9.600 230.400 0342158 5.0 x 25 Full thread TX 25 200 9.600 230.400 0342159 5.0 x 30 Full thread TX 25 200 6.400 153.600 0342160 5.0 x 35 Full thread TX 25 200 6.400 153.600 0342164 5.0 x 40 Full thread TX 25 200 4.800 115.200 0342165 5.0 x 50 Full thread TX 25 200 4.800 115.200 0342166 5.0 x 60/36 Partial thread TX 25 200 3.200 76.800 0342167 5.0 x 70/42 Partial thread TX 25 200 3.200 76.800 0342168 5.0 x 80/53 Partial thread TX 25 200 3.200 76.800 0342169 5.0 x 90/59 Partial thread TX 25 200 3.200 76.800 0342170 5.0 x 100/66 Partial thread TX 25 200 3.200 76.800 0342172 5.0 x 120/73 Partial thread TX 25 200 3.200 76.800 0342176 6.0 x 40 Full thread TX 30 200 4.800 115.200 0342177 6.0 x 50 Full thread TX 30 200 3.200 76.800 0342178 6.0 x 60/36 Partial thread TX 30 200 3.200 76.800 0342179 6.0 x 70/42 Partial thread TX 30 200 2.400 57.600 0342180 6.0 x 80/53 Partial thread TX 30 200 2.400 57.600 0342181 6.0 x 90/59 Partial thread TX 30 200 2.400 57.600 0342182 6.0 x 100/66 Partial thread TX 30 100 1.600 38.400 0342184 6.0 x 120/73 Partial thread TX 30 100 1.600 38.400
-
