Black phosphated, with a VERY sharp tip and bugle head. 50 collated screws. For use in collated drivers.
Thread type
Fine
Coarse
Thread type
Thread rapidly engages in metal stud profiles. Can also be used in wood bases.
Quick fixing in wood base due to coarse thread.
Article | Dimensions(ØxL/dl)mm | Thread type | PH no. | Unit | Outer box | Pallet |
---|---|---|---|---|---|---|
0415010 | 3.6 x 25 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415012 | 3.6 x 35 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415014 | 3.6 x 45 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415016 | 3.6 x 55 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
Article | Dimensions(ØxL/dl)mm | Thread type | PH no. | Unit | Outer box | Pallet |
---|---|---|---|---|---|---|
0416010 | 3.9 x 25 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416012 | 3.9 x 35 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416014 | 3.9 x 45 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416016 | 3.9 x 55 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
Copyright WOFIX 2020
Black phosphated, with a VERY sharp tip and bugle head. 50 collated screws. For use in collated drivers.
Thread type | |
---|---|

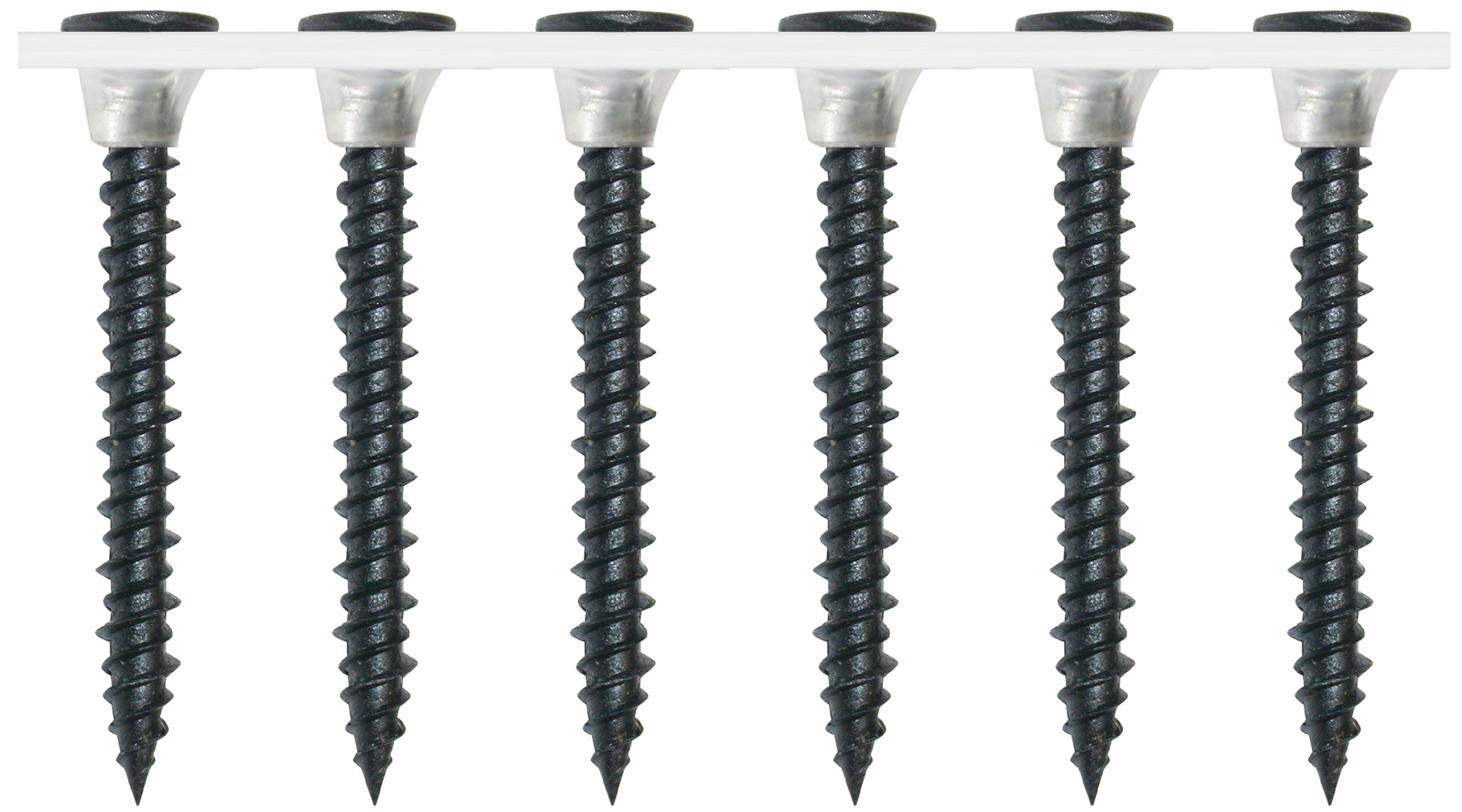

Fine | Thread rapidly engages in metal stud profiles. Can also be used in wood bases. |

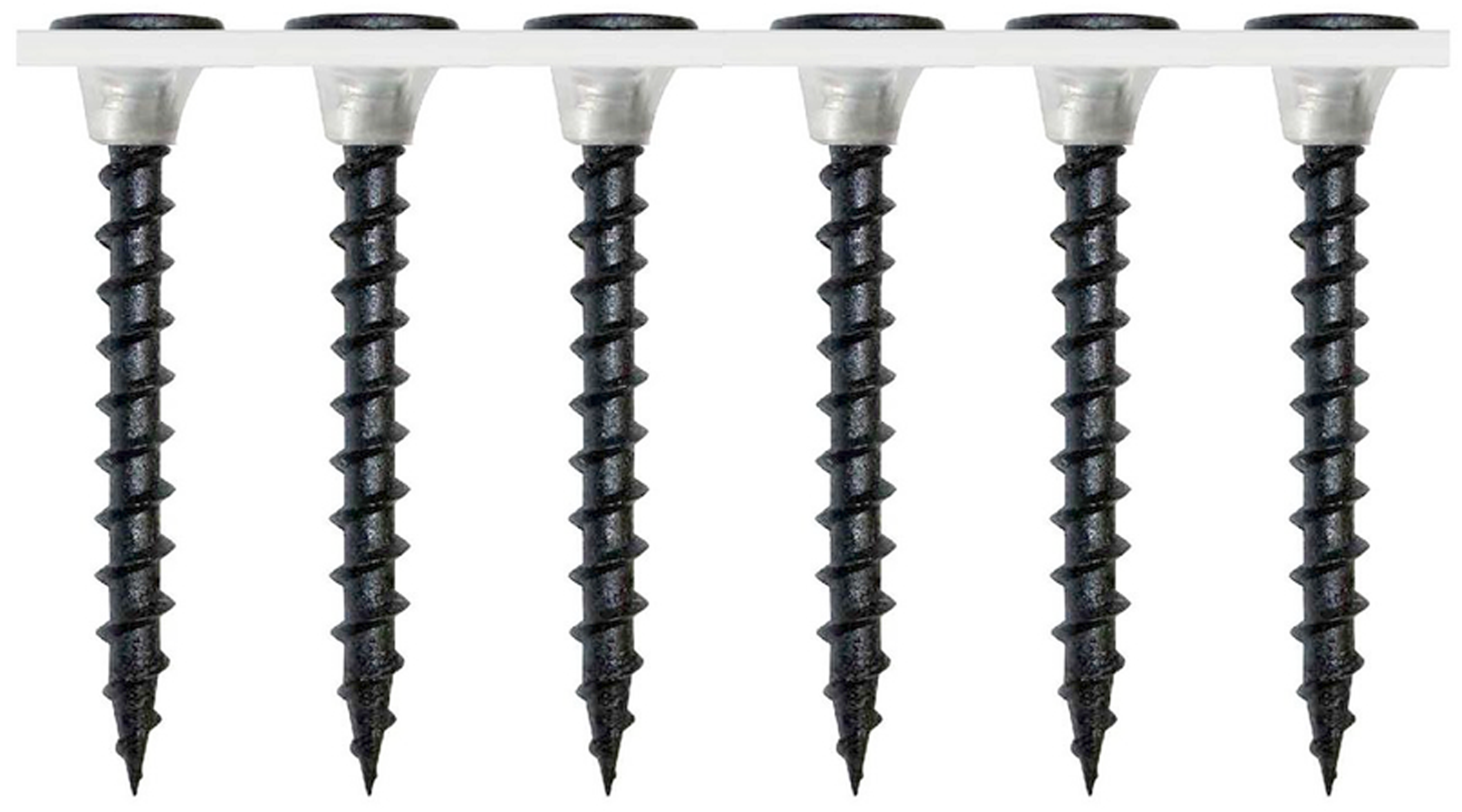

Coarse | Quick fixing in wood base due to coarse thread. |
Article | Dimensions(ØxL/dl)mm | Thread type | PH no. | Unit | Outer box | Pallet |
---|---|---|---|---|---|---|
0415010 | 3.6 x 25 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415012 | 3.6 x 35 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415014 | 3.6 x 45 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
0415016 | 3.6 x 55 | Fine | PH 2 | 1000 | 12.000 | 144.000 |
Article | Dimensions(ØxL/dl)mm | Thread type | PH no. | Unit | Outer box | Pallet |
---|---|---|---|---|---|---|
0416010 | 3.9 x 25 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416012 | 3.9 x 35 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416014 | 3.9 x 45 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
0416016 | 3.9 x 55 | Coarse | PH 2 | 1000 | 12.000 | 144.000 |
